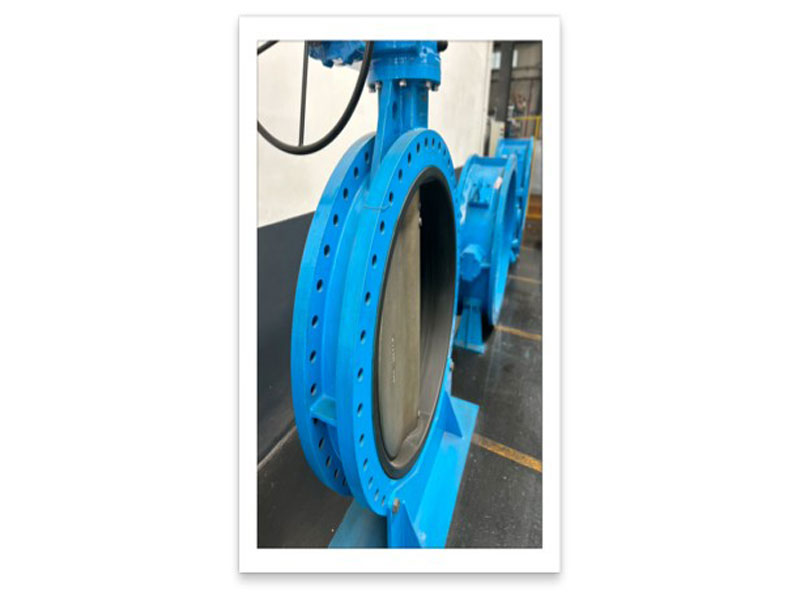

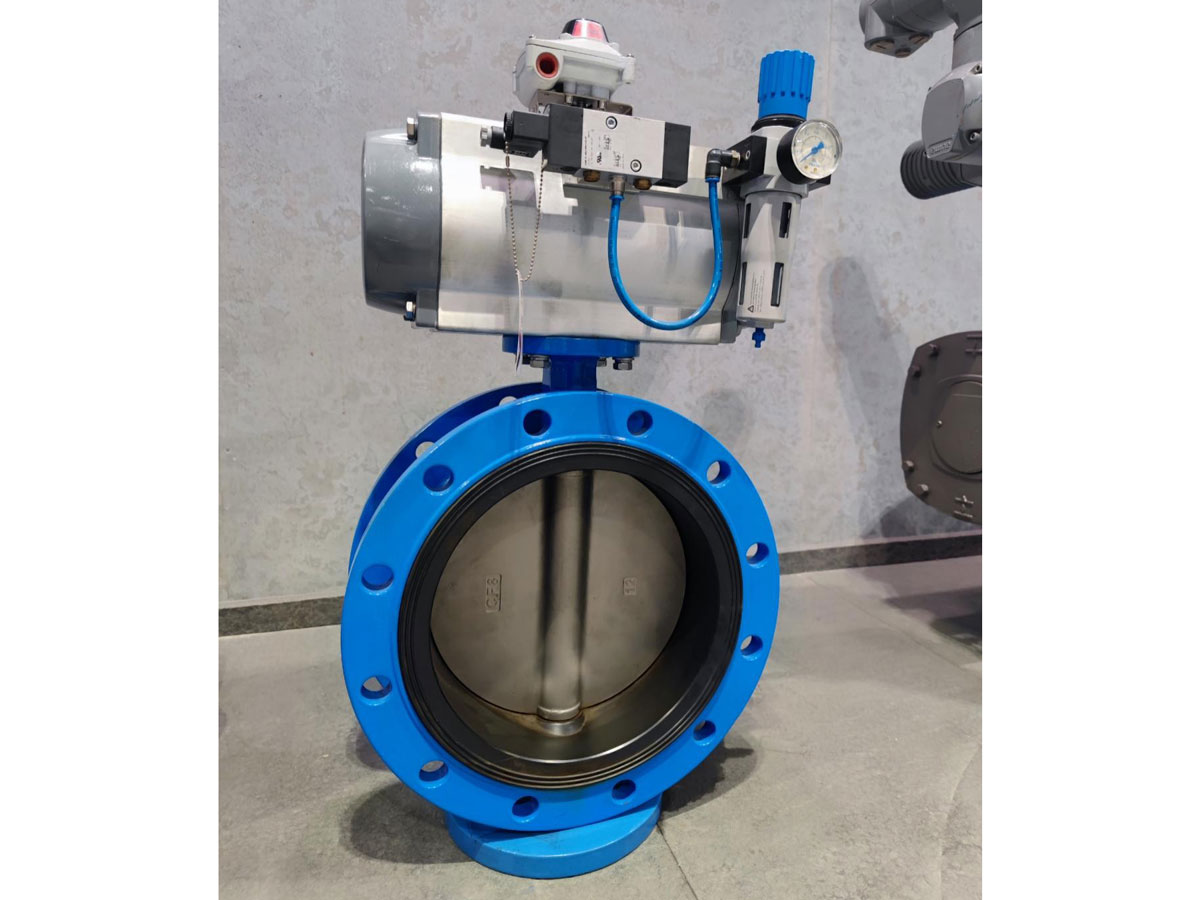

Flange Concentric Butterfly Valve: Functions and Characteristics

Flow Regulation

One of the primary functions of a concentric butterfly valve is to regulate the flow of fluid within a pipeline. The valve consists of a circular disc that rotates around an axis. By adjusting the angle of the disc, the cross - sectional area of the flow path can be changed. When the disc is fully open, it is parallel to the flow direction, allowing maximum flow. As the disc rotates towards the closed position, the flow rate is gradually reduced until the valve is fully shut, stopping the flow completely.

On - Off Control

In addition to flow regulation, concentric butterfly valves can serve as on - off devices. They can be quickly and easily opened or closed to start or stop the flow of fluids such as water, air, or other gases. This makes them suitable for applications where rapid isolation of the pipeline is required, for example, in emergency shutdown situations.

Simple Structure

The structure of a concentric butterfly valve is relatively simple. It mainly consists of a valve body, a disc, a stem, and a sealing ring. This simplicity not only reduces the manufacturing cost but also makes the valve easy to install, maintain, and repair. Compared with other types of valves, fewer components mean less chance of mechanical failure, which improves the overall reliability of the valve.

Lightweight and Compact

Concentric butterfly valves are generally lightweight and compact. Their small size and low weight make them ideal for applications where space is limited, such as in some marine or offshore installations. They also require less support structure compared to larger and heavier valves, which can save on installation costs.

Good Sealing Performance

The concentric design of the butterfly valve allows for effective sealing. The disc fits snugly against the sealing ring when the valve is closed, preventing leakage. This is crucial in applications where fluid leakage can cause environmental pollution, safety hazards, or economic losses.

Low Flow Resistance

When fully open, the disc of a concentric butterfly valve offers relatively low flow resistance. This means that there is less energy loss when the fluid passes through the valve, resulting in energy savings. It is especially beneficial in large - diameter pipelines where high - volume fluid flow is required.

In conclusion, the concentric butterfly valve's functions and characteristics make it a popular choice in many industrial sectors, offering an efficient and cost - effective solution for fluid control.
