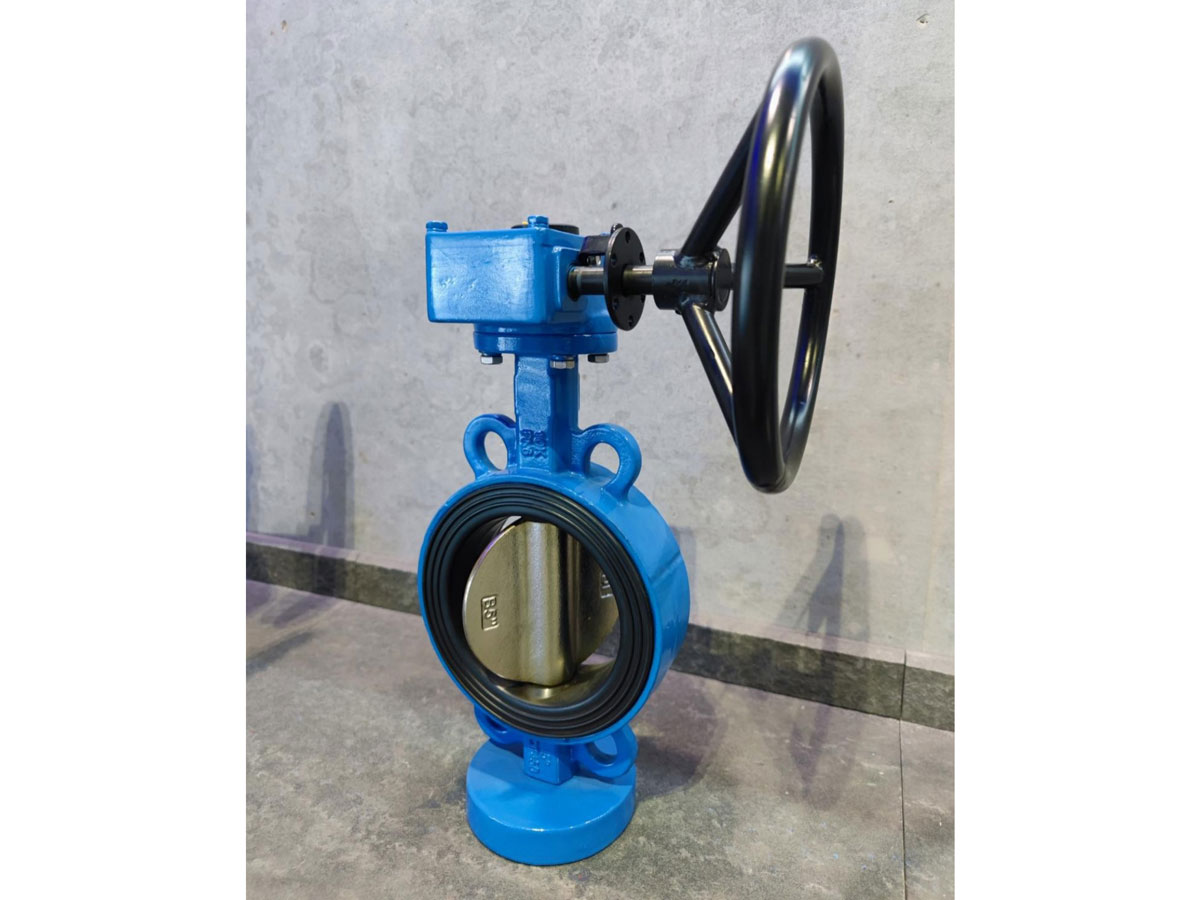

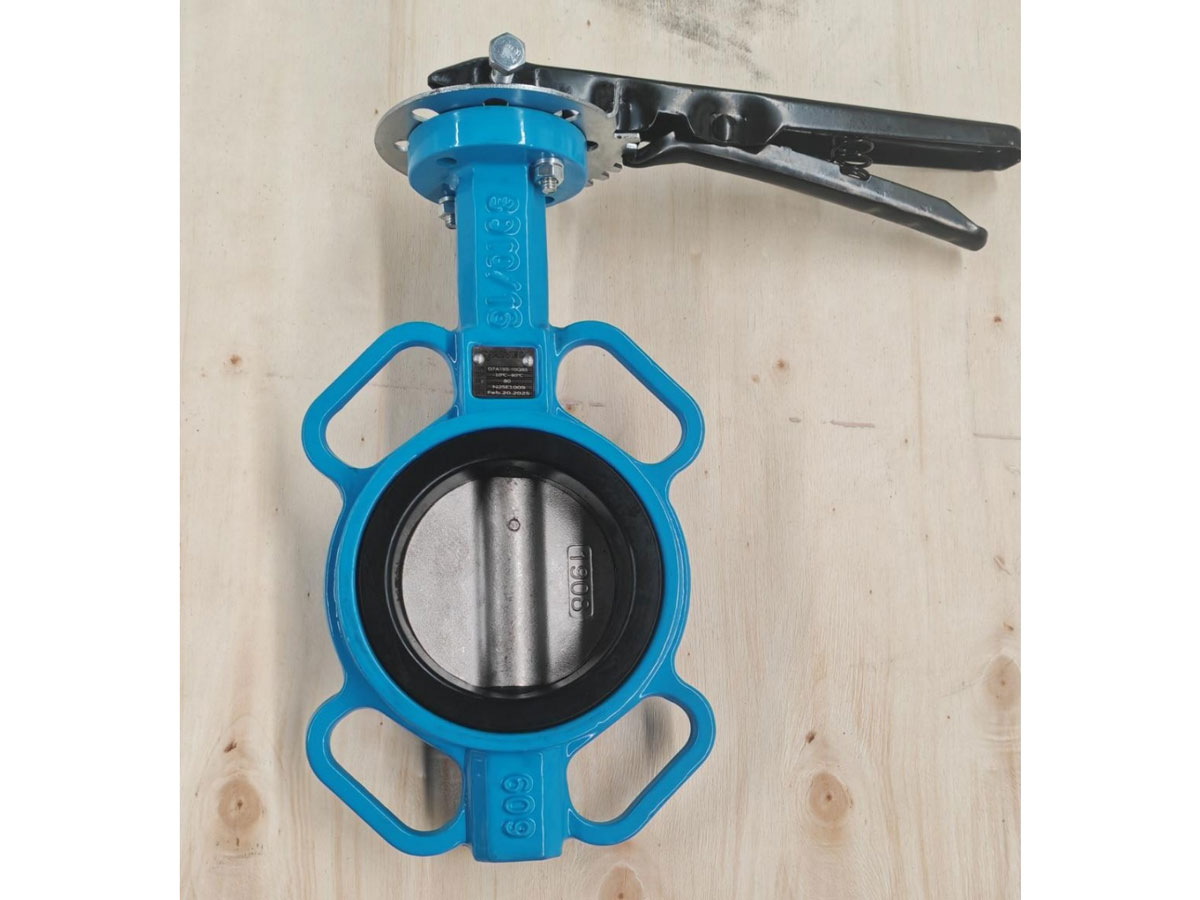

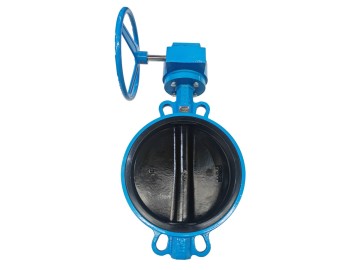

Functions and Features of Wafer Butterfly Valve

Flow Control

The primary function of a wafer butterfly valve is to regulate the flow of fluids such as water, gas, or oil. By rotating the valve's disc (also known as the butterfly), the opening area of the valve can be adjusted, thereby controlling the volume of fluid passing through the pipeline. This makes it suitable for applications where precise flow control is required .

On - Off Control

It can also serve as an on - off valve. When the disc is fully open, the fluid can flow freely through the valve; when the disc is fully closed, it stops the fluid flow completely. This quick on - off operation is useful in emergency shutdown situations or in systems where intermittent flow is needed.

Simple Structure

Wafer butterfly valves have a relatively simple structure, consisting mainly of a valve body, a disc, a stem, and a seat. This simplicity not only reduces manufacturing costs but also makes the valve easy to install, maintain, and repair. The straightforward design also means fewer components are likely to fail, increasing the overall reliability of the valve .

Compact and Lightweight

Compared to other types of valves, wafer butterfly valves are more compact and lightweight. Their thin wafer - style design allows them to fit into tight spaces, which is especially beneficial in installations where space is limited. The reduced weight also eases handling during installation and transportation .

Quick Operation

These valves can be opened or closed rapidly. The disc rotates only 90 degrees from fully open to fully closed, enabling fast response times. This feature is crucial in applications where rapid flow adjustments or shut - offs are necessary, such as in emergency systems or in processes where flow needs to be changed quickly.

Good Sealing Performance

With proper seat materials and design, wafer butterfly valves can provide excellent sealing performance. They can effectively prevent leakage, even under high - pressure conditions. This is important for ensuring the safety and efficiency of fluid - handling systems .

Cost - Effective

Due to their simple structure, lower manufacturing costs, and relatively low installation requirements, wafer butterfly valves are a cost - effective solution for fluid control. They offer a good balance between performance and price, making them a popular choice in many industries .

Wide Application Range

Wafer butterfly valves are suitable for a wide range of applications, including water treatment, HVAC systems, chemical processing, and power generation. They can handle different types of fluids and operate under various pressure and temperature conditions .

In conclusion, the wafer butterfly valve's combination of functions and features makes it a versatile and practical choice for fluid control in many industrial and commercial applications.
