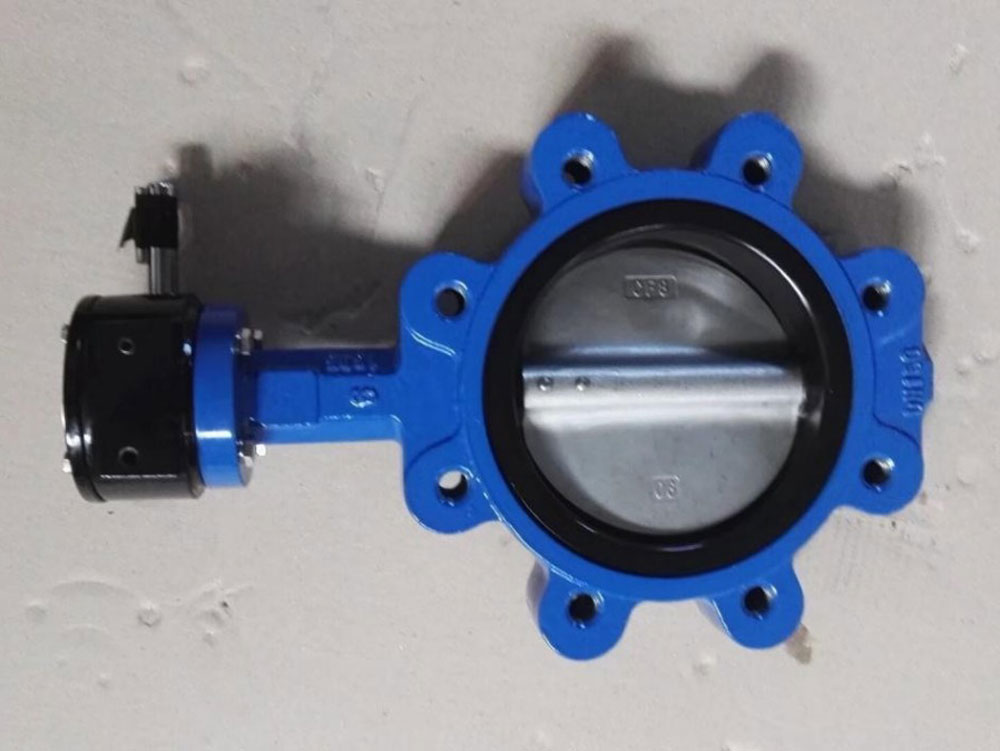

The Functions and Features of Lug Butterfly Valve

Flow Control

The primary function of a lug butterfly valve is to regulate the flow of various media, such as water, gas, and oil, in industrial pipelines. By rotating the valve's disc, the opening area in the valve changes, allowing for precise adjustment of the flow rate . For example, in a water supply system, operators can control the amount of water flowing through the pipeline by adjusting the lug butterfly valve to meet different usage requirements.

On - Off Function

It can also serve as an on - off device. When the valve disc is fully open, the medium can flow through the pipeline unimpeded; when it is fully closed, it can effectively stop the flow of the medium. This is crucial in systems where the medium needs to be isolated for maintenance or safety reasons. For instance, in a chemical processing plant, the lug butterfly valve can be closed to prevent the leakage of hazardous chemicals during equipment maintenance .

Compact Structure

Lug butterfly valves have a relatively simple and compact design. They do not take up much space in the pipeline system, which is beneficial for installations where space is limited. Compared with some other types of valves, their small size makes them easier to install and integrate into existing pipeline layouts .

Lightweight

These valves are generally lightweight, which simplifies the installation process and reduces the load on the pipeline support structures. Their light weight also makes them more cost - effective in terms of transportation and handling. For example, in offshore oil platforms where weight is a critical factor, lug butterfly valves are a popular choice .

Quick Operation

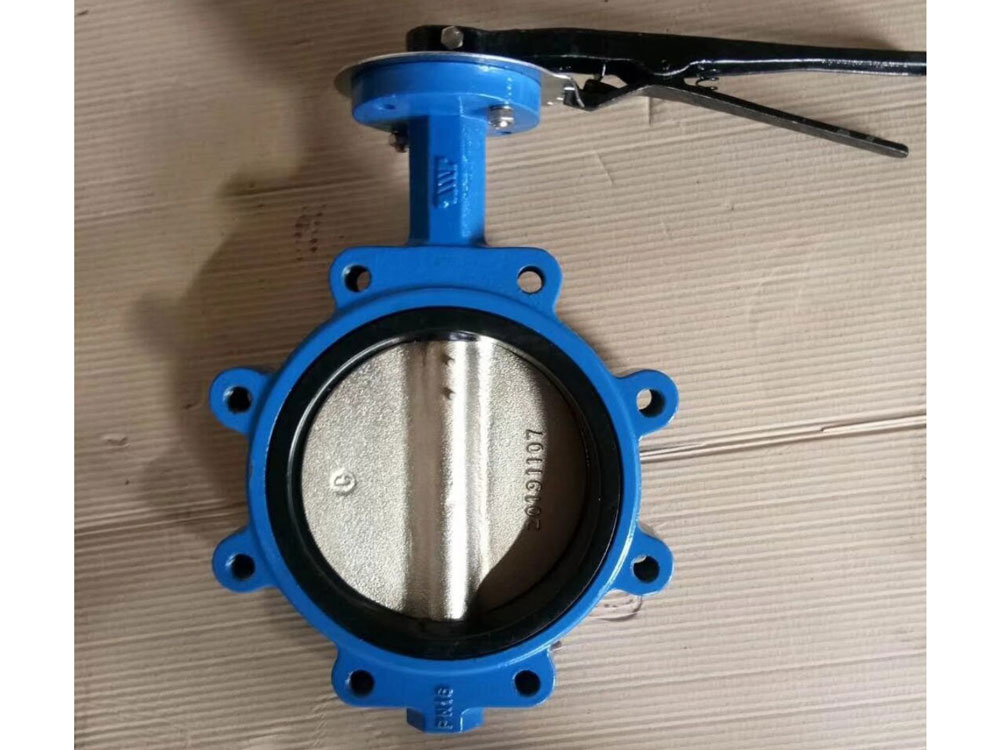

Lug butterfly valves can be opened or closed quickly. A quarter - turn of the valve handle is usually sufficient to fully open or close the valve, which is very efficient in emergency situations. For example, in case of a pipeline rupture, the valve can be rapidly closed to prevent large - scale leakage of the medium .

Good Sealing Performance

Modern lug butterfly valves are designed with excellent sealing performance. They can effectively prevent the leakage of the medium, even under high - pressure or high - temperature conditions. Some advanced lug high - performance butterfly valves adopt innovative double - offset designs, which ensure ultra - reliable sealing and are suitable for a wide range of working conditions .

Easy Installation

The lug design of these valves allows for easy installation and connection to the pipeline. They can be fixed to the pipeline using bolts through the lugs, and the installation process does not require complex tools or procedures. This makes them suitable for both new installations and pipeline retrofit projects .
